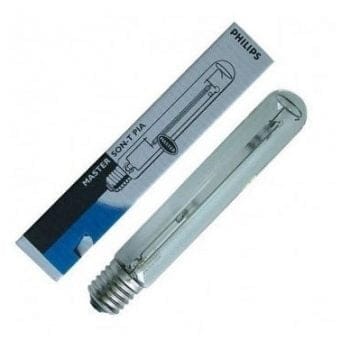

The Philips Master GreenPower 600W / 400 Volt HPS Pro EL Lamp has been designed specifically for HPS 400 Volt / 600 Watt lighting systems. (Hi Par, Lumatek) This lamp must NOT be used with any other type of lighting system. When used in a HPS 400 Volt / 600 Watt system, this lamp will outperform virtually all other 600 Watt HPS lamps.
Specifications
General Characteristics
| System Description | System 400V | Life to 5% failures | 12000 hr |
|---|---|---|---|
| Cap-Base | E40 | Life to 10% failures | 14000 hr |
| Bulb | T46 [T 46mm] | Life to 20% failures | 16000 hr |
| Bulb Finish | Clear | Life to 50% failures | 20000 hr |
Light Technical Characteristics
| Color Code | 220 [CCT of 2000K] | PPF maintenance 5000h | % |
|---|---|---|---|
| Color Rendering Index | 30 Ra8 | PPF maintenance 6000h | 97% |
| Color Temperature | 2000 K | PPF maintenance 8000h | 96% |
| Luminous Flux EM 25°C, Rated | 87550 Lm | PPF maintenance 10000h | 94% |
| Luminous Flux EL 25°C, Rated | Lm | PPF maintenance 15000h | % |
| Lum Efficacy Rated EM 25°C | 144 Lm/W | PPF maintenance 12000h | 92% |
| Lum Efficacy Rated EL 25°C | Lm/W | PPF maintenance 16000h | % |
| Photosynthetic Photon Flux PPF | 1120 umol/s | Design Mean Lumens | Lm |
| PPF maintenance 2000h | 100 % | Chromaticity Coordinate X | 526 |
| PPF maintenance 4000h | 100 % | Chromaticity Coordinate Y | 420 |
Electrical Characteristics
| Lamp Wattage | 600 W | Lamp Current EL | A |
|---|---|---|---|
| Lamp Wattage EM 25°C, Nominal | 600.0 W | Ignition Time | 10 (max) s |
| Lamp Wattage EM 25°C, Rated | 608.0 W | Run-up time 90% | 5 (max) min |
| Lamp Wattage EL 25°C, Rated | W | Ignition Supply Voltage | V |
| Lamp Wattage EL 25°C, Nominal | W | Ignition Peak Voltage | V |
| Voltage | 400 V | Re-ignition Time [min] | 1 (max) min |
| Lamp Voltage | 190 V | Dimmable | Yes |
| Lamp Current EM | 3.64 A |
Environmental Characteristics
| Energy Efficiency Label (EEL) | A++ |
|---|---|
| Mercury (Hg) Content | 42.0 mg |
| Energy consumption kWh/1000h | 669 kW |
